Ready to Run Control Box

Description

PLEASE DO NOT CHANGE THE SETTINGS…  It is ready to run.  The ONLY time to change a setting is to put the correct number of Lights for each output and the Protocol if you bought puck for each output  (SK6812RGBW).  We are getting a lot of support emails because people are messing around with other settings after they get it.  If you do this the warranty could be void.

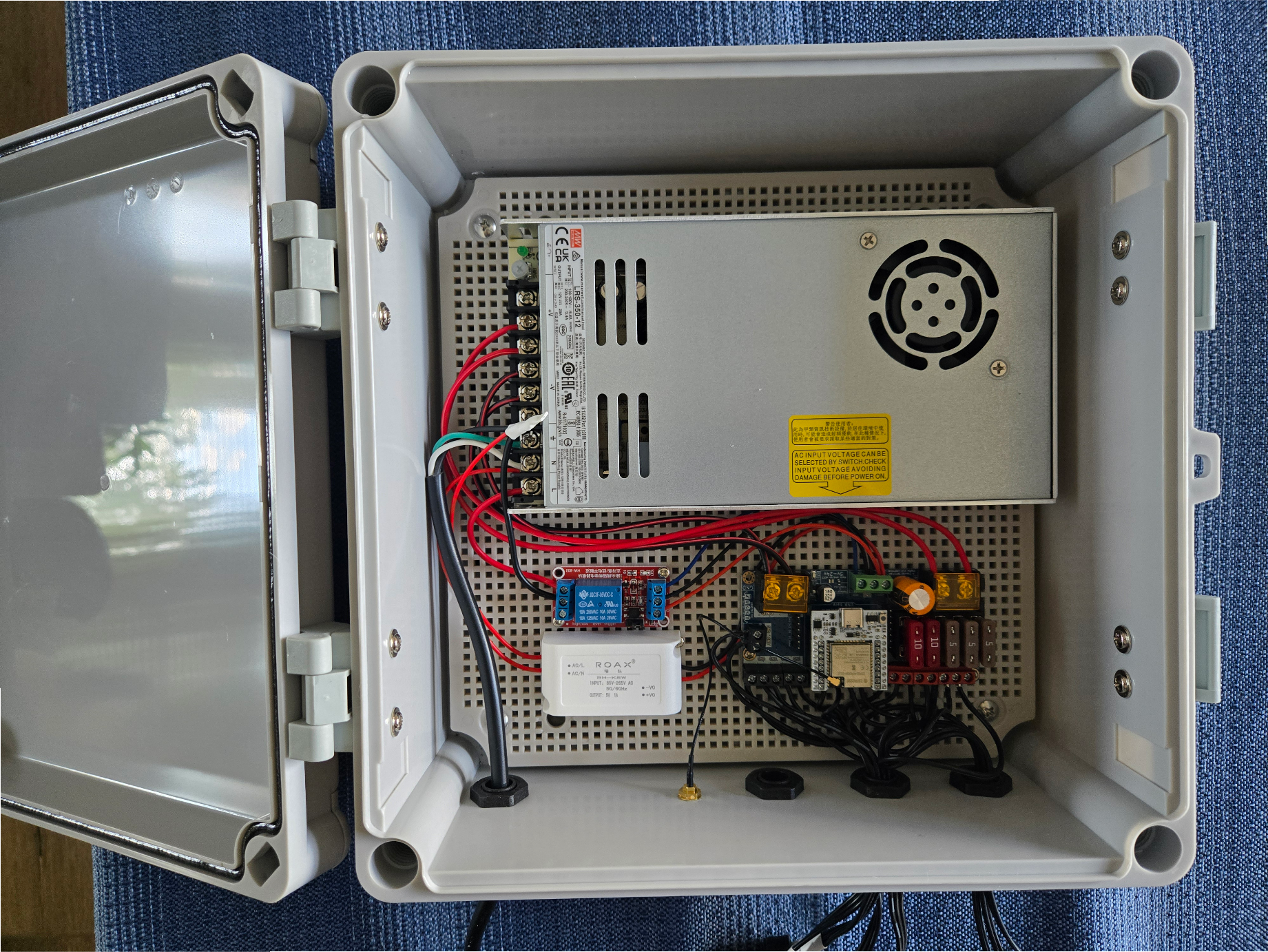

Includes:

1 – Weatherproof Box
1 – Dig-Quad (WLED) Controller
1 – 12v, 350 watt, 30 amp Meanwell power supply
1 – 1 amp 5v power supply (to run the Dig-Quad)
1 – Relay to shut down the main power supply while not in use

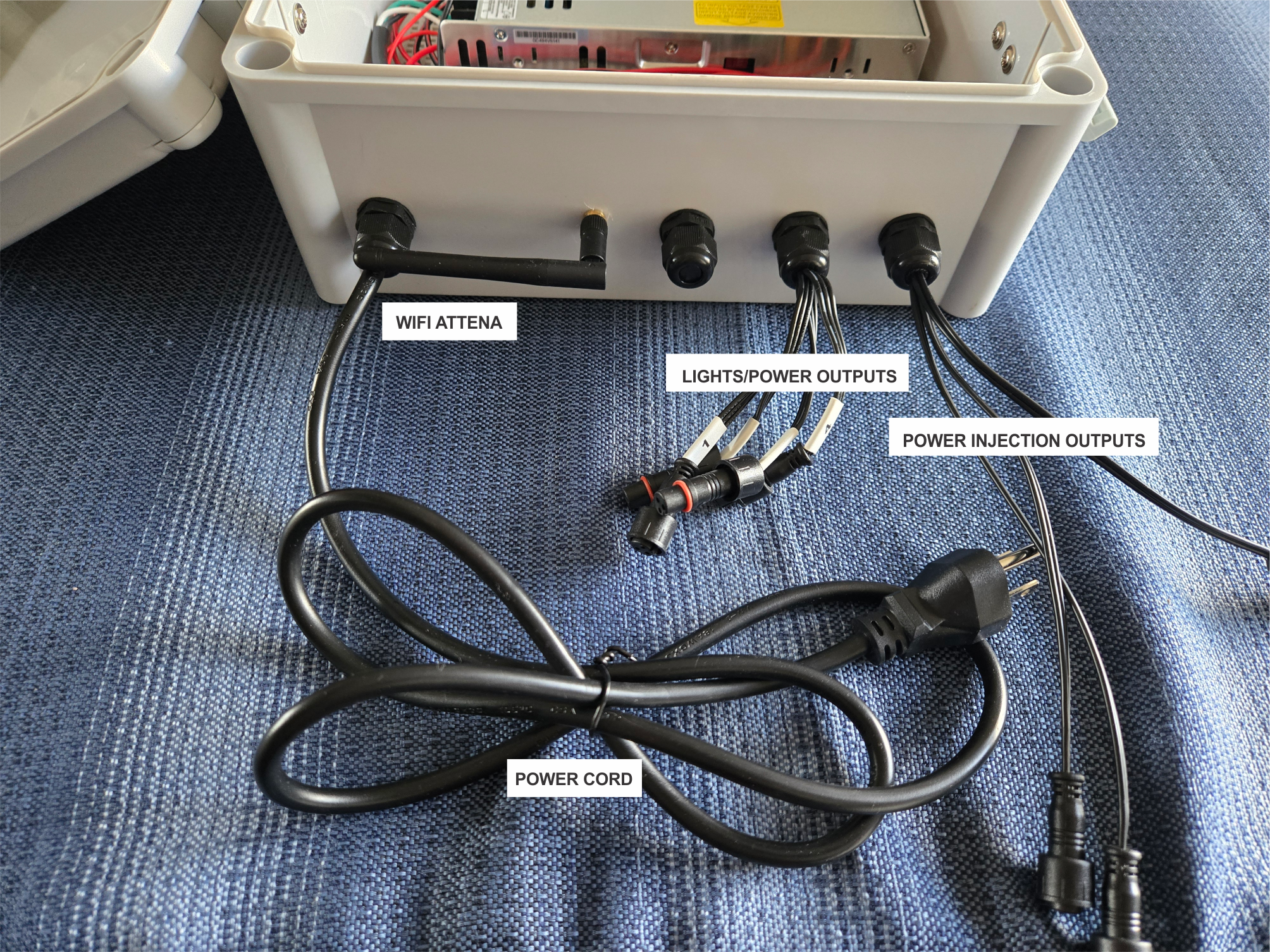

4 – Mini xConnect Female Pigtails one for each output on the Dig-Quad
1 – 6 Foot 120v power cord
3 – Power/Ground wires ready for power injection.

Already set up for testing your lights as you install them!  Just plug it in and add your lights.

After install all you have to do is follow the normal WLED instructions to join it to your network and input the number of lights on each output.

Settings are set to RGB and 600 lights on 4 outputs with a pattern playing on start up.

This makes it MUCH easier to install your Permatrack system. Once your lights are all up, just adjust the number of lights per output and you are done!

As of Dec 18th… The controllers are with FedEx… As soon as we have the delivery date I will put them in stock.  There are quite a few people on the list to be notified when they are in stock.   Please make sure you sign up for that so that when I put them in you will be able to get one .
